NuclearCounter

This is a pre-built "Hertz Hunter" spectrum analyzer, used to monitor and measure 5.8GHz FPV signals, similar to a RF Explorer, but with less accuracy and at a lower cost.

For more details on the capabilities, see the original software repo.

Features:

• 18650 Battery Slot
• USB-C Power Input for charging
• OLED Screen
• SMA Antenna Connector

Included:

• PCB
• ESP32-C3
• RX5808
• SMA Connector
• 18650 Slot
• OLED Screen

Not included, but needed for a complete device:

• Case (if desired)
• 18650 Battery
• SMA Antenna (linear recommended)

Note: On this first revision, the power switch is labeled backwards and it's programmed with V1.1.0 software.

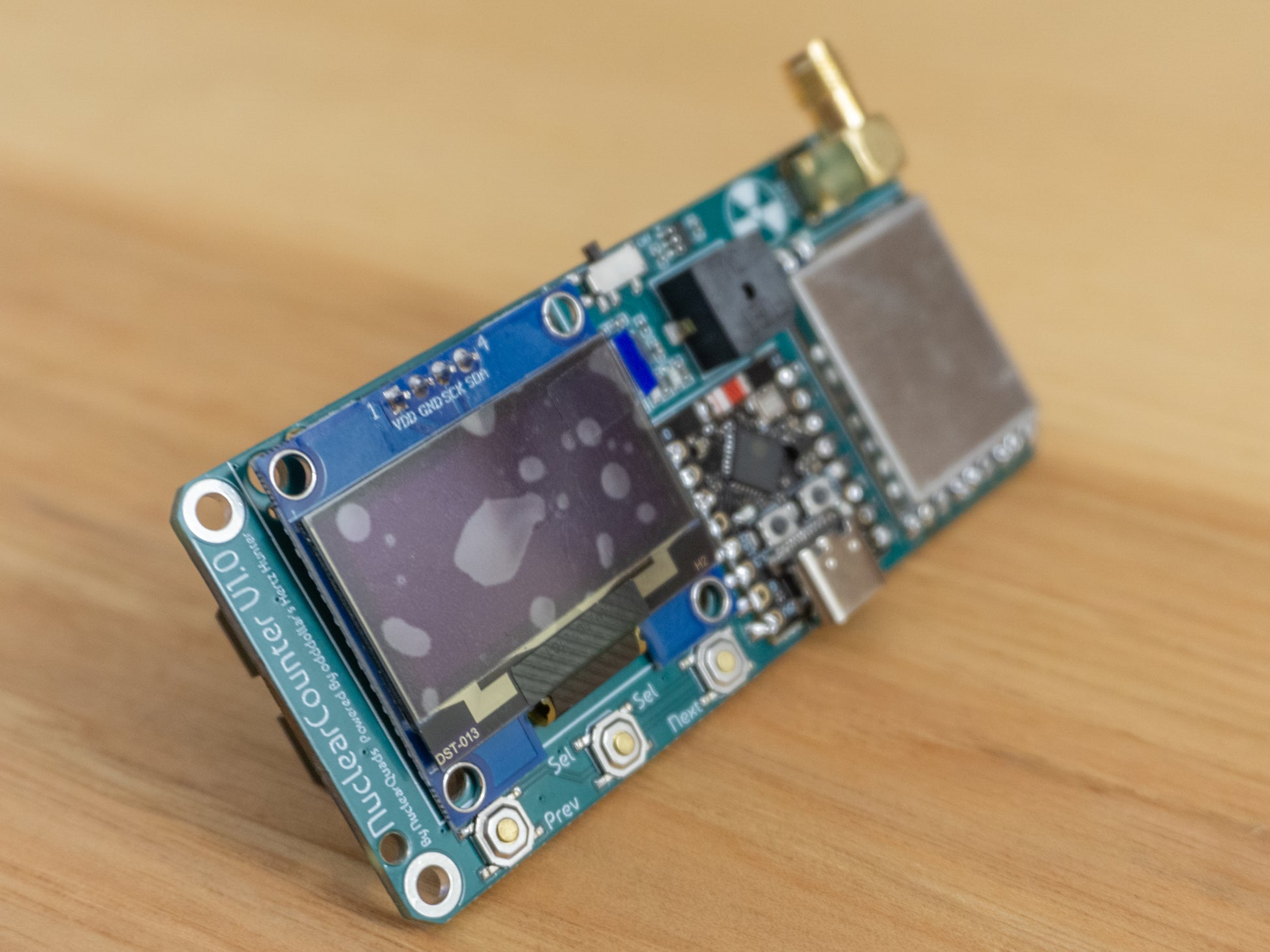

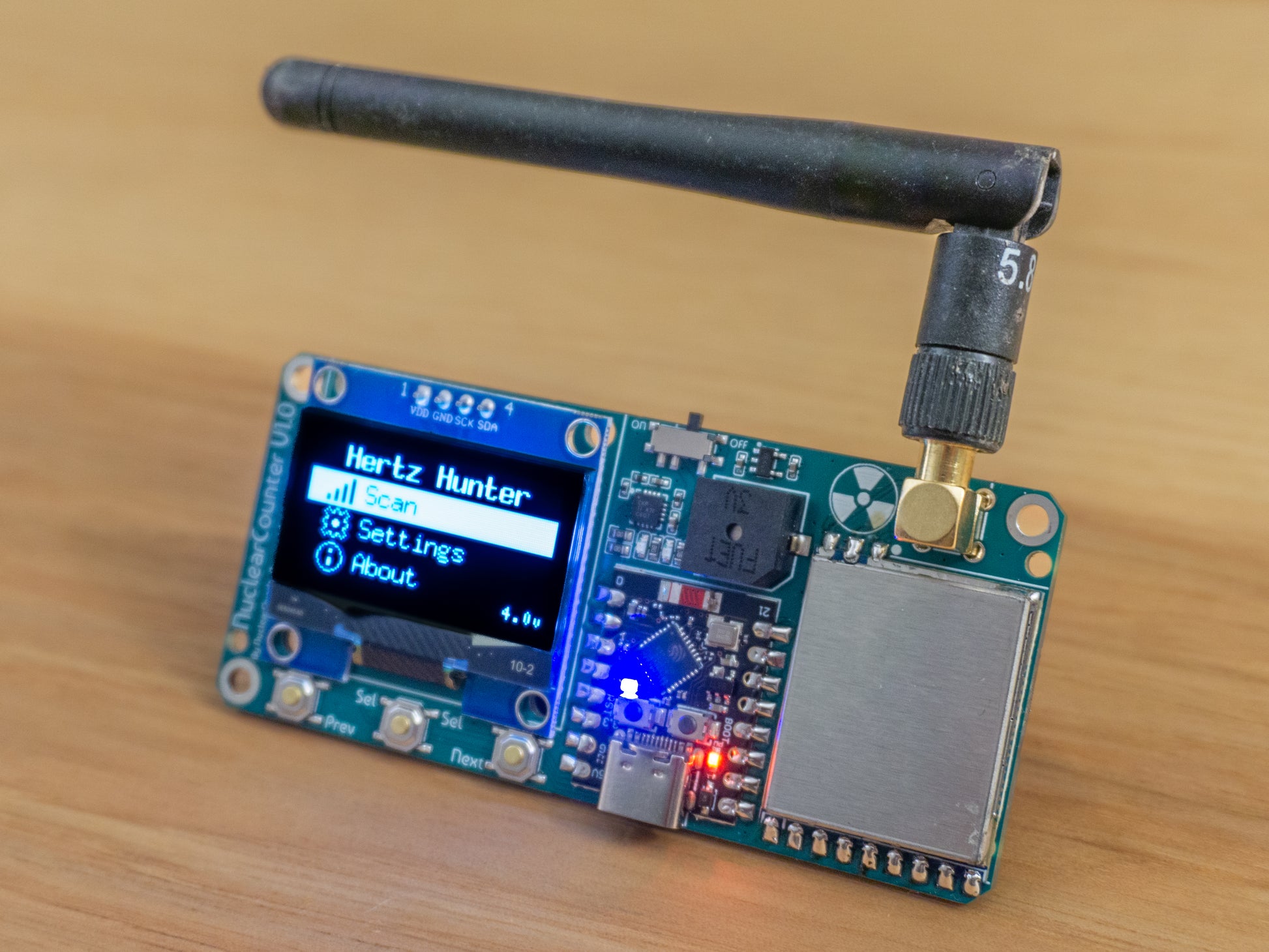

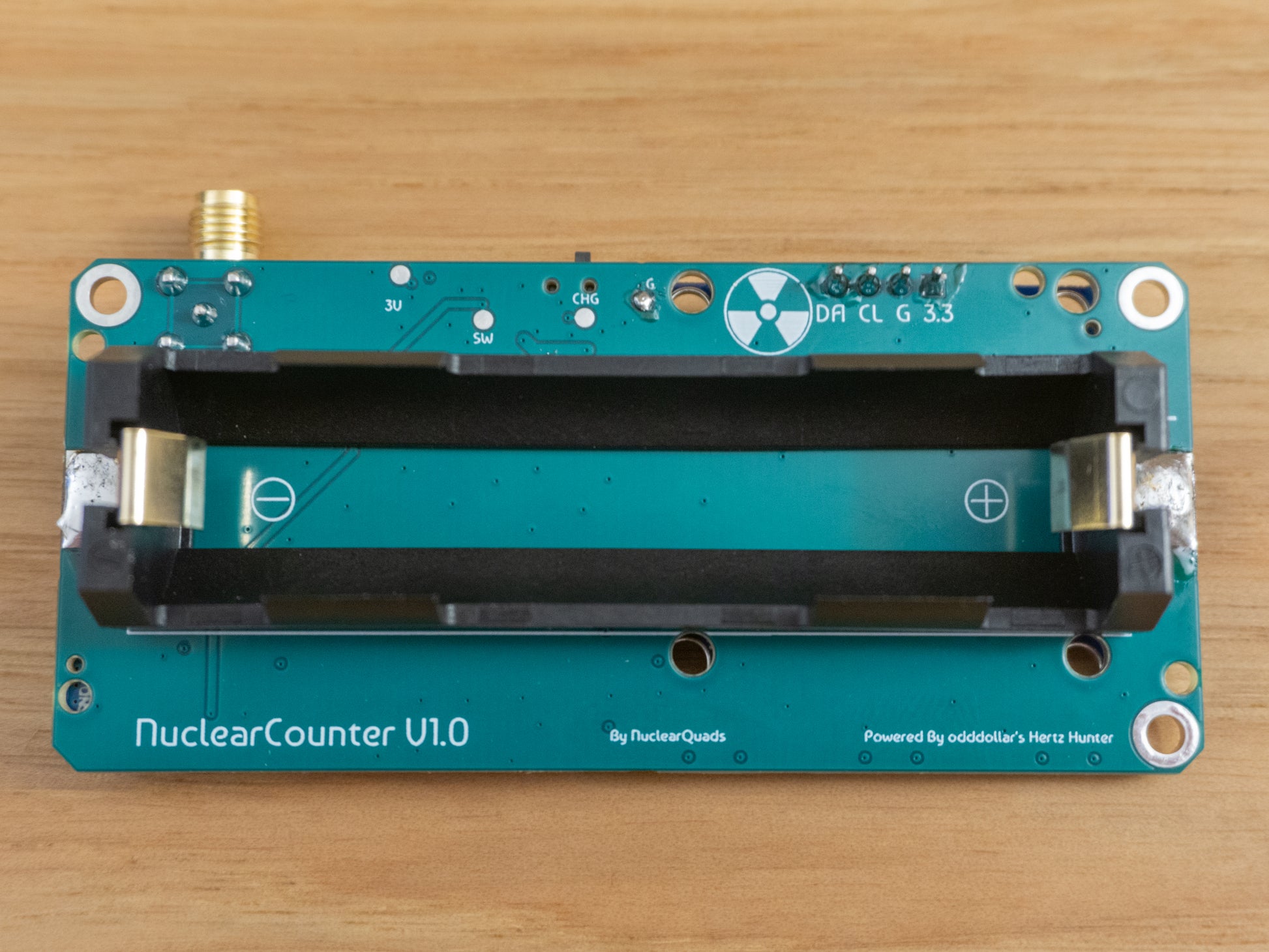

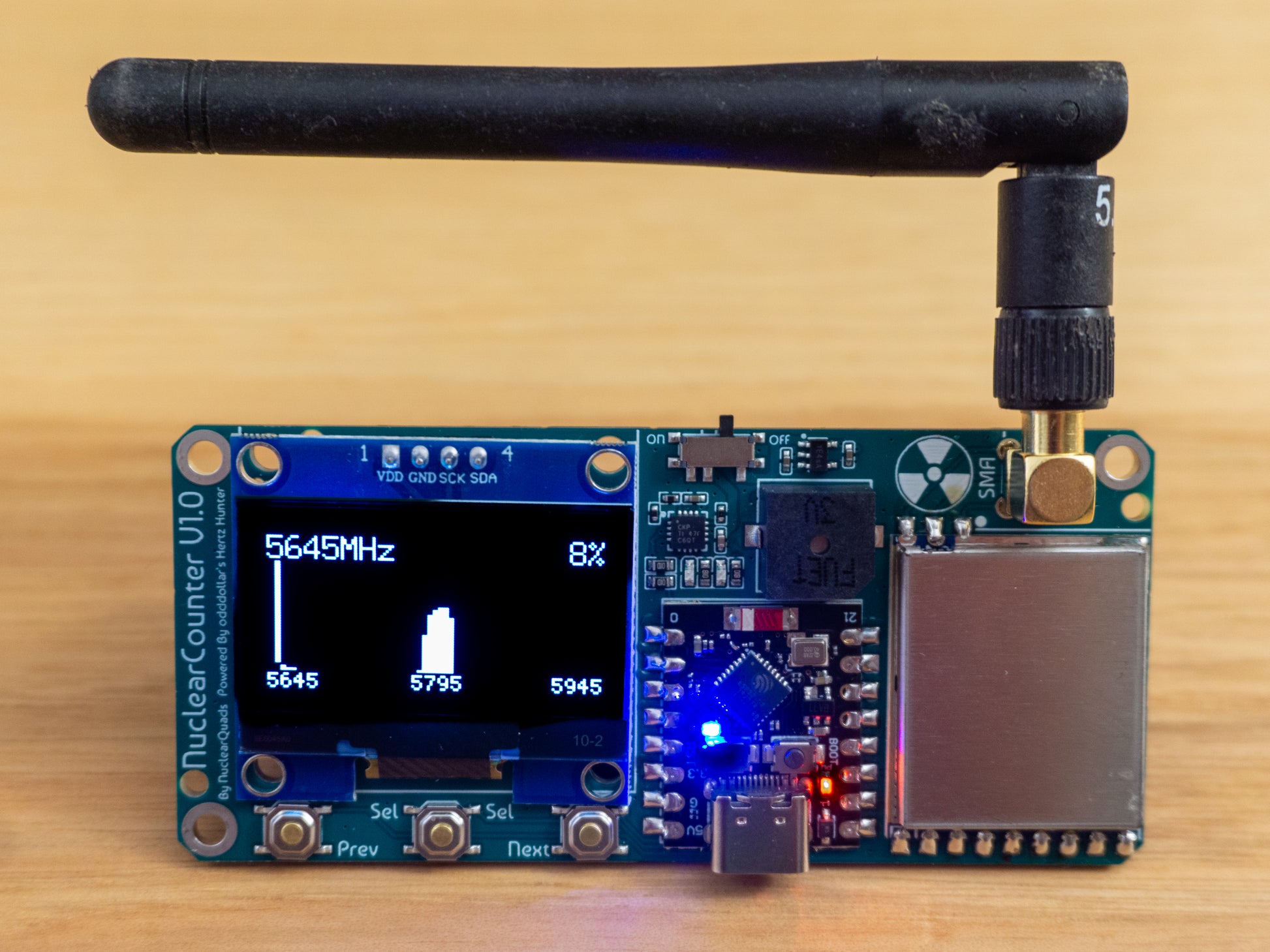

The first 3 pictures are of a fully assembled example, not all parts pictured are included.
